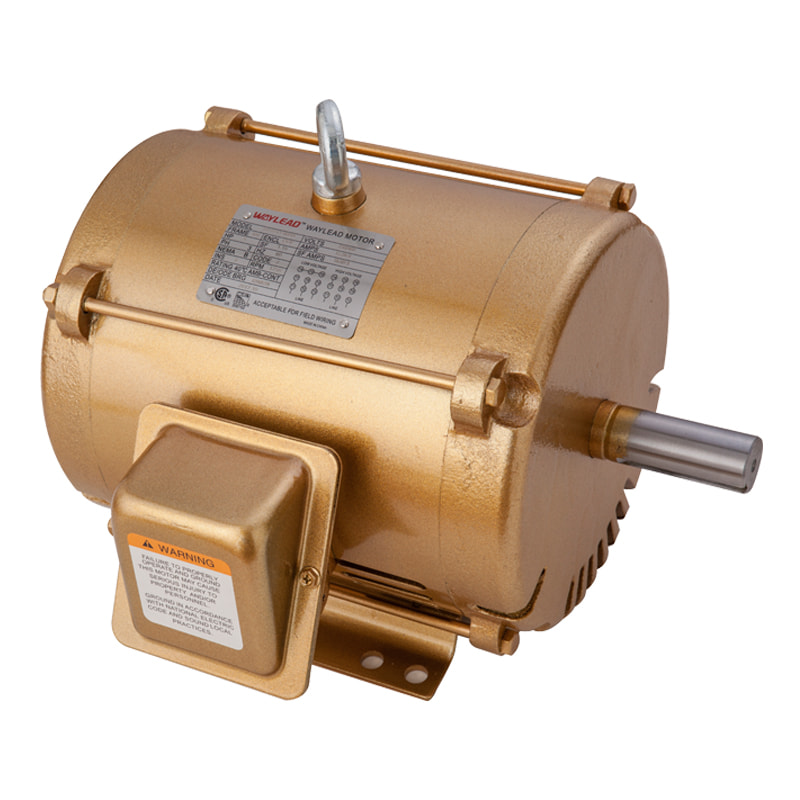

Dripproof Premium Efficiency Motor

Dripproof Premium Efficiency Motor

Features:

HP: 1HP-20HP

Pole: 2P, 4P, 6P

Frame: 56-256T

Rolled steel

NEMA design: B

Accept C-face Kit

Service factor: 1.15

Insulation Class: F, H (UL approved)

Enclosure: ODP

IP Class: IP23

CSA&CUS,UL certified

EPACT (CC)& EEV certified

Contact Us

Details




Company Advantage

1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.


2. Cixi Waylead is a professional Dripproof Premium Efficiency Motor Suppliers and Dripproof Premium Efficiency Motor company with rich industry experience. We can make "tailor-made" Dripproof Premium Efficiency Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.


3. All our oem Dripproof Premium Efficiency Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.


4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!



SD56-215T 208-230/460V Three Phase Premium Efficiency Motor Data

HP

RPM
60HZ

NEMA
FRAME

Model

Volts

HZ

ENCL.

S.F

Full Load AMPS

%
EFF.

WGT.
LBS.

1

3600

56

SD561M2A

208-230/460

60

ODP

1.15

3.5-3.2/1.6

77

33

3600

143T

SD143T1M2A

208-230/460

60

ODP

1.15

3.5-3.2/1.6

77

34

1800

56

SD561M4A

208-230/460

60

ODP

1.15

3.5-3.2/1.6

85.5

43

1800

143T

SD143T1M4A

208-230/460

60

ODP

1.15

3.5-3.2/1.6

85.5

44

1200

56

SD561M6A

208-230/460

60

ODP

1.15

3.9-3.6Z1.8

82.5

43

1200

145T

SD145T1M6A

208-230/460

60

ODP

1.15

3.9-3.6Z1.8

82.5

44





1.5





3600

56

SD561.5M2A

208-230/460

60

ODP

1.15

4.7-4.3/2.15

83.8

40

3600

143T

SD143T1.5M2A

208-230/460

60

ODP

1.15

4.74.3/2.15

83.8

41

1800

56

SD561.5M4A

208-230/460

60

ODP

1.15

5.0-4.5/2.25

82.6

47

1800

145T

SD145T1.5M4A

208-230/460

60

ODP

1.15

5.0^.5/2.25

82.6

48

1200

182T

SD182T1.5M6A

208-230/460

60

ODP

1.15

5.2W.8/2.4

82.6

70





2





3600

56

SD562M2A

208-230/460

60

ODP

1.15

5.8-6.3/2.65

84.2

40

3600

145T

SD145T2M2A

208-230/460

60

ODP

1.15

5.8-6.3/2.65

84.2

41

1800

56

SD562M4A

208-230/460

60

ODP

1.15

6.3-5.9/2.95

86.5

50

1800

145T

SD145T2M4A

208-230/460

60

ODP

1.15

6.3-5.9/2.95

86.5

51

1200

184T

SD184T2M6A

208-230/460

60

ODP

1.15

6.5-6.0/3.0

86.5

78



3



3600

56

SD563M2A

208-230/460

60

ODP

1.15

8.4-7.7/3.85

87.5

44

3600

145T

SD145T3M2A

208-230/460

60

ODP

1.15

8.4-7.7/3.85

84.7

45

1800

182T

SD182T3M4A

208-230/460

60

ODP

1.15

9.4-8.6Z4.3

84.7

82

1200

213T

SD213T3M6A

208-230/460

60

ODP

1.15

9.04.2/4.1

89.5

110



5



3600

182T

SD182T5M2A

208-230/460

60

ODP

1.15

13.6-12.4/6.2

88.8

76

1800

184T

SD184T5M4A

208-230/460

60

ODP

1.15

14.0-13.2/6.6

89.5

92

1200

215T

SD215T5M6A

208-230/460

60

ODP

1.15

15.0-13.6/6.8

89.5

121

7.5

3600

184T

SD184T7.5M2A

208-230/460

60

ODP

1.15

19.0-17.6/8.8

88.7

83

1800

213T

SD213T7.5M4A

208-230/460

60

ODP

1.15

21.6-19.8/9.9

89.9

132

10

3600

213T

SD213T10M2A

208-230/460

60

ODP

1.15

26.0-23.6/11.8

89.3

120

1800

215T

SD215T10M4A

208-230/460

60

ODP

1.15

29-26.6/13.3

89.5

145

15

3600

215T

SD215T15M2A

208-230/460

60

ODP

1.15

38.0-34.4/17.2

89.1

134

1800

254T

SD254T15M4A

208-230/460

60

ODP

1.15

42.0-38.4/19.2

93

201

20

1800

256T

SD256T20M4A

208-230/460

60

ODP

1.15

57.0-52.0/26.0

92.3

223



SD56-215T 575V Three Phase Premium Efficiency Motor Data

HP

RPM
60HZ

NEMA
FRAME

Model

Volts

HZ

ENCL.

S.F

Full Load AMPS

%
EFF.

WGT.
LBS.





1





3600

56

SD561M2D

575

60

ODP

1.15

1.3

77

33

3600

143T

SD143T1M2D

575

60

ODP

1.15

1.3

77

34

1800

56

SD561M4D

575

60

ODP

1.15

1.1

85.5

43

1800

143T

SD143T1M4D

575

60

ODP

1.15

1.1

85.5

44

1200

56

SD561M6D

575

60

ODP

1.15

1.4

82.5

43

1200

145T

SD145T1M6D

575

60

ODP

1.15

1.4

82.5

44





1.5





3600

56

SD561.5M2D

575

60

ODP

1.15

1.9

84

40

3600

143T

SD143T1.5M2D

575

60

ODP

1.15

1.9

83.9

41

1800

56

SD561.5M4D

575

60

ODP

1.15

1.8

86.5

47

1800

145T

SD145T1.5M4D

575

60

ODP

1.15

1.8

80.9

48

1200

182T

SD182T1.5M6D

575

60

ODP

1.15

1.9

86.5

70





2





3600

56

SD562M2D

575

60

ODP

1.15

2.20

85.5

40

3600

145T

SD145T2M2D

575

60

ODP

1.15

2.20

85.5

41

1800

56

SD562M4D

575

60

ODP

1.15

2.3

86.5

50

1800

145T

SD145T2M4D

575

60

ODP

1.15

2.3

86.5

51

1200

184T

SD184T2M6D

575

60

ODP

1.15

2.5

87.5

78



3



3600

56

SD563M2D

575

60

ODP

1.15

3.5

85.5

44

3600

145T

SD145T3M2D

575

60

ODP

1.15

3.5

85.5

45

1800

182T

SD182T3M4D

575

60

ODP

1.15

3.3

89.5

82

1200

213T

SD213T3M6D

575

60

ODP

1.15

3.3

88.5

110



5



3600

182T

SD182T5M2D

575

60

ODP

1.15

4.9

86.5

76

1800

184T

SD184T5M4D

575

60

ODP

1.15

5.4

89.5

92

1200

215T

SD215T5M6D

575

60

ODP

1.15

5.4

89.5

121

7.5

3600

184T

SD184T7.5M2D

575

60

ODP

1.15

7.1

88.5

83

1800

213T

SD213T7.5M4D

575

60

ODP

1.15

7.8

91.0

132

10

3600

213T

SD213T10M2D

575

60

ODP

1.15

9.45

89.5

120

1800

215T

SD215T10M4D

575

60

ODP

1.15

10.5

91.7

145

15

3600

215T

SD215T15M2D

575

60

ODP

1.15

13.8

90.2

134

1800

254T

SD254T15M4D

575

60

ODP

1.15

15.5

92.7

201

20

1800

256T

SD256T20M4D

575

60

ODP

1.15

20.8

92.1

223

CONTACT WITH US

Industry Knowledge Extension

How good is the waterproof and moisture-proof performance of "Dripproof Premium Efficiency Motor" when exposed to strong or high humidity?

When "Dripproof Premium Efficiency Motor" is exposed to strong or high humidity environments, its waterproof and moisture-proof properties are particularly important. This kind of motor was designed with various harsh working environments in mind, so it has excellent performance in waterproofing and moisture-proofing.
First, let’s talk about its waterproof performance. The word Dripproof itself implies the motor's ability to withstand the penetration of water droplets. The motor housing adopts special waterproof materials and structural design to ensure that water droplets cannot easily penetrate inside. This design not only prevents moisture from damaging the internal circuits and parts of the motor, but also ensures the stable operation of the motor in humid environments. In addition, the motor is equipped with waterproof joints and seals to ensure waterproof performance at cables and interfaces, further improving the overall waterproof effect.
Next, let’s take a look at its moisture-proof properties. A high-humidity environment can easily cause the internal parts of the motor to rust or corrode, thus affecting its performance and life. In order to deal with this problem, "Dripproof Premium Efficiency Motor" uses high-quality moisture-proof materials and coatings to effectively isolate moisture from corroding the internal parts of the motor. At the same time, there are vents and drainage structures inside the motor, which can promptly discharge the moisture accumulated inside and maintain a dry environment inside the motor.
In addition to the above measures, this motor has also undergone strict waterproof and moisture-proof tests. Before leaving the factory, the motor will be placed in a simulated high-humidity environment for long-term running tests to ensure that it can withstand the challenges of humid environments in actual use. These tests not only verify the waterproof and moisture-proof performance of the motor, but also provide a strong guarantee for its stable operation in various harsh environments.
Therefore, "Dripproof Premium Efficiency Motor" performs well in strong or high-humidity environments, and its waterproof and moisture-proof performance is sufficient to cope with various harsh working environments. This kind of motor not only has efficient and stable operation characteristics, but also can adapt to various complex environments. It is an indispensable and important equipment in the industrial field.
