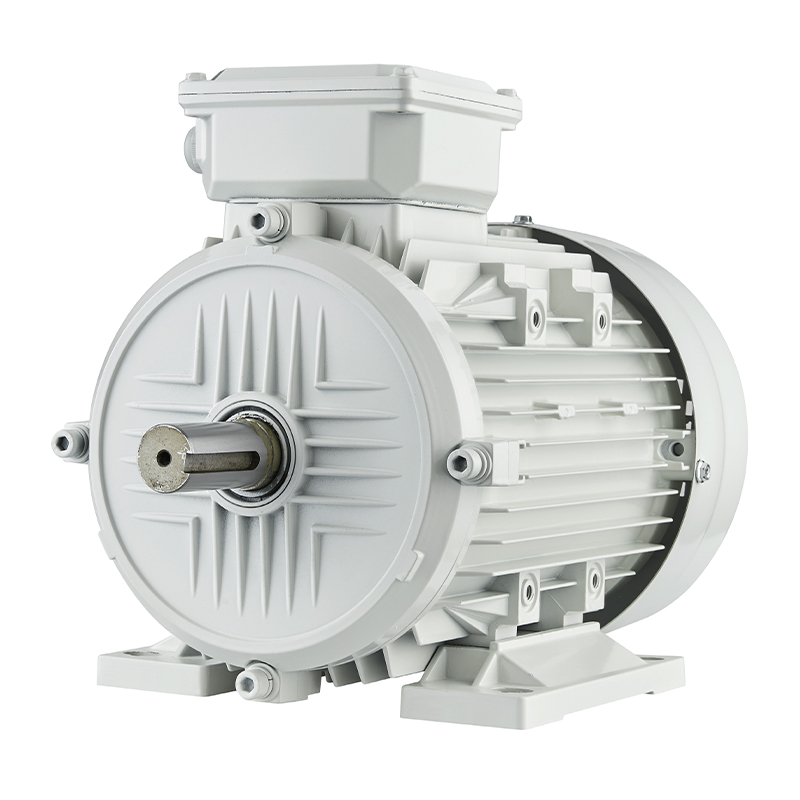

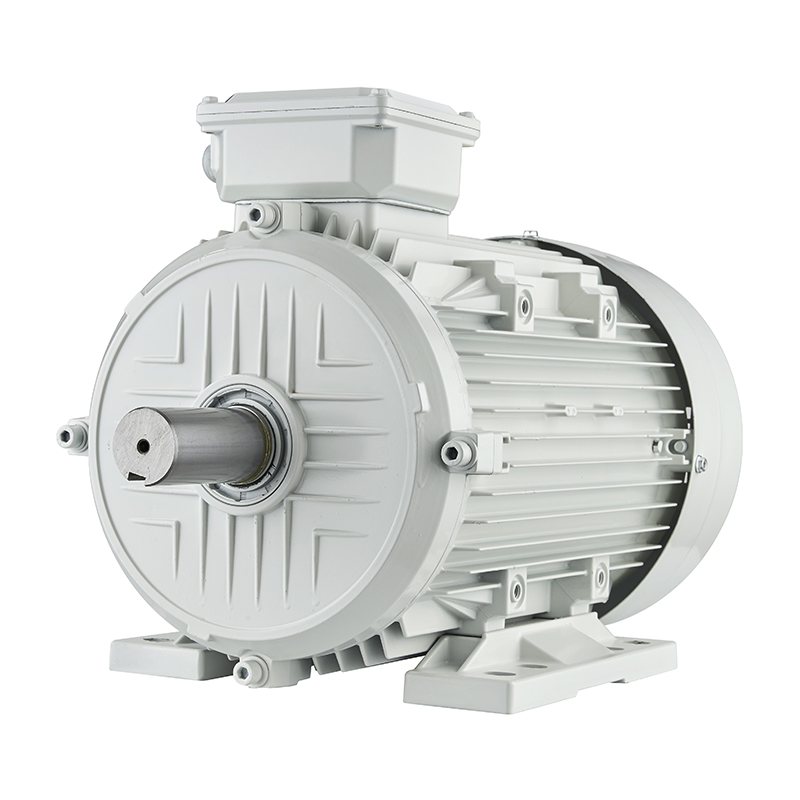

IEC/IE3 Premium Efficiency Motor

Features:
Power: 0.75KW-37KW,2、4、6Poles
Voltage: 380V/400v/415V
Frequency: 50Hz
Frame: 80-200
Die Cast Alloy Aluminum housing for 132 frame and below
Iron Casting housing for the motor above 132 frame
Mount Type: B3、B5、B35
Insulation Class F, Insulation structure UL approved
Enclosure: TEFC
IP Class: IP 55
CE Certified

Details

Company Advantage

1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.

2. Cixi Waylead is a professional IEC/IE3 Premium Efficiency Motor Suppliers and IEC/IE3 Premium Efficiency Motor company with rich industry experience. We can make "tailor-made" IEC/IE3 Premium Efficiency Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.

3. All our oem IEC/IE3 Premium Efficiency Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.

4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!

KW	RPM 50HZ	NEMA FRAME	Model	Volts	ENCL	Full Load AMPS	% EFF.	POWER FACTOR	WGT. (KG)
0.75	2850	80	WS800.75M2B	380V/400V/415V	TEFC	1.73/1.65/1.60	80.7	0.81	9
	1410	80	WS800.75M4B	380V/400V/415V	TEFC	1.88/1.79/1.72	82.5	0.74	12
	940	90	WS900.75M6B	380V/400V/415V	TEFC	2.30/2.19/2.12	78.9	0.68	14
1.1	2860	80	WS801.1M2B	380V/400V/415V	TEFC	2.45/2.34/2.25	82.7	0.82	11
	1440	90	WS901.1M4B	380V/400V/415V	TEFC	2.70/2.56/2.47	84.1	0.74	15
	940	90	WS901.1M6B	380V/400V/415V	TEFC	3.06/2.92/2.81	81	0.67	17
1.5	2860	90	WS901.5M2B	380V/400V/415V	TEFC	3.31/3.15/3.02	84.2	0.82	15
	1440	90	WS901.5M4B	380V/400V/415V	TEFC	3.46/3.29/3.17	85.3	0.77	19
	940	100	WS1001.5M6B	380V/400V/415V	TEFC	3.96/3 76/3.62	82.5	0.74	35
2.2	2890	90	WS902.2M2B	380V/400V/415V	TEFC	4.62/4.41/4.23	85.9	0.85	17
	1440	100	WS1002.2M4B	380V/400V/415V	TEFC	4.72/4.49/4.32	86.7	0.82	24
	950	112	WS1122.2M6B	380V/400V/415V	TEFC	5.85/5.55/5.36	84.3	0.7	23
3	2900	100	WS1003M2B	380V/400V/415V	TEFC	5.89/5.60/5.39	87.1	0.88	24
	1440	100	WS1003M4B	380V/400V/415V	TEFC	6.67/6.34/6.12	87.7	0.79	29
	950	132	WS1323M6B	380V/400V/415V	TEFC	7.21/6.86/6.61	85.6	0.75	39
4	2910	112	WS1124M2B	380V/400V/415V	TEFC	7.59/7.21/6.95	88.1	0.9	31
	1450	112	WS1124M4B	380V/400V/415V	TEFC	8.39/7.97/7.68	88.6	0.82	35
	960	132	WS1324M6B	380V/400V/415V	TEFC	9.45/9.01/8.67	86.8	0.74	48
5.5	2910	132	WS1325.5M2B	380V/400V/415V	TEFC	10 20/9.79/9.44	89.2	0.89	44
	1450	132	WS1325.5M4B	380V/400V/415V	TEFC	11.52/11.13/10.75	89.6	0.84	48
	960	132	WS1325.5M6B	380V/400V/415V	TEFC	13.42/12.71/12.22	88	0.72	56
7.5	2910	132	WS1327.5M2B	380V/400V/415V	TEFC	13.71/13.11/12.61	90.1	0.91	52
	1455	132	WS1327.5M4B	380V/400V/415V	TEFC	14.96/14.26/13.69	90.4	0.83	58
	970	160	WS1607.SM6B	380V/400V/415V	TEFC	16.82/16.02/15.43	89.1	0.76	79
11	2920	160	WS16011M2B	380V/400V/415V	TEFC	20.81/19.80/19.12	91.2	0.91	64
	1460	160	WS16011M4B	380V/400V/415V	TEFC	21.95/20.86/20.18	91.4	0.83	90
	970	160	WS16011M6B	380V/400V/415V	TEFC	23.68/22.47/21.69	90.3	0.78	106
15	2930	160	WS16015M2B	380V/400V/415V	TEFC	27.96/26.53/25.52	91.9	0.89	103
	1460	160	WS16015M4B	380V/400V/415V	TEFC	28.96/27.56/26.67	92.1	0.85	112
	980	180	WS18015M6B	380V/400V/415V	TEFC	30.15/28.66/27.59	91.2	0.82	126
18.5	2940	180	WS18018.5M2B	380V/400V/415V	TEFC	33.41/31.82/30.62	92.4	0.9	121
	1470	180	WS18018.5M4B	380V/400V/415V	TEFC	35.26/33.48/32.38	92.6	0.86	131
	980	200	WS20018.5M6B	380V/400V/415V	TEFC	38.82/36.93/35.52	91.7	0.8	145
22	2950	180	WS18022M2B	380V/400V/415V	TEFC	39.58/37.62/36.25	92.7	0.9	131
	1470	180	WS18022M4B	380V/400V/415V	TEFC	41.81/39.75/38.32	93	0.86	147
	980	200	WS20022M6B	380V/400V/415V	TEFC	45.92/43.65/42.08	92.2	0.8	165
30	2950	200	WS20030M2B	380V/400V/415V	TEFC	54.24/51.58/49.65	93.3	0.9	160
30	1470	200	WS20030M4B	380V/400V/415V	TEFC	55.32/52.63/50.74	93.6	0.87	182
37	2950	200	WS20037M2B	380V/400V/415V	TEFC	66.71/63.28/61.12	93.7	0.9	175
