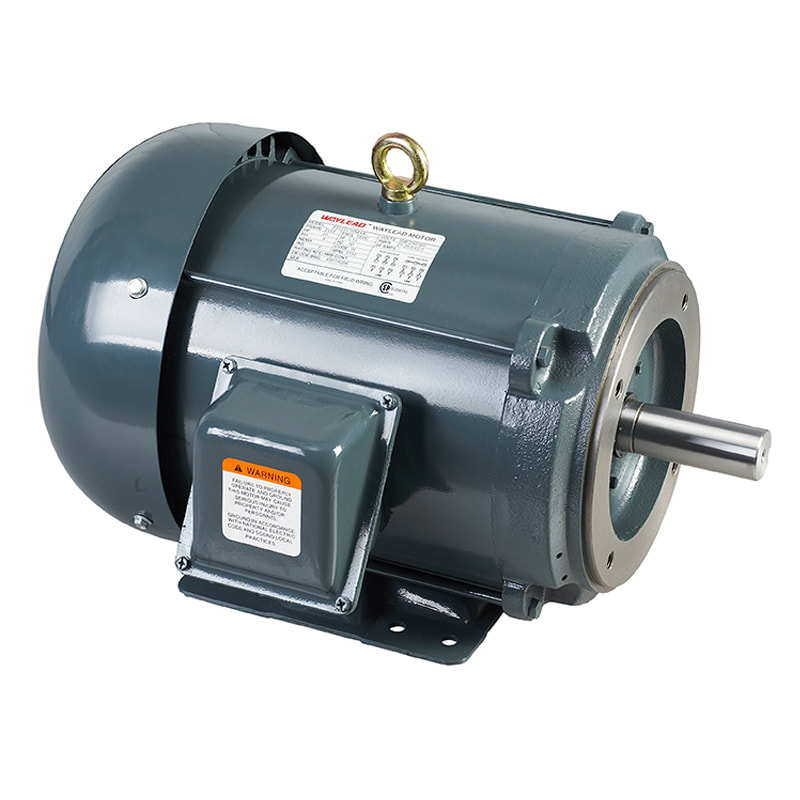

Features:
HP: 1HP-10HP
Pole: 2P, 4P, 6P
Frame: 143T-215T
Rolled steel
NEMA design B
Accept C-Face Kit
Service factor: 1.15
Insulation Class: F (UL approved)
Enclosure: TEFC
IP Class: IP44
CSA&CUS,UL certified
EPACT (CC)& EEV certified
1. Cixi Waylead Electric Motor Manufacturing Co.,Ltd is located in Cixi City, Zhejiang Province, China, close to the famous international ports Shanghai and Ningbo. The economic and technical conditions are superior, and the transportation is convenient.
2. Cixi Waylead is a professional Three-Phase Totally Enclosed High-Efficiency Motor Suppliers and Three-Phase Totally Enclosed High-Efficiency Motor company with rich industry experience. We can make "tailor-made" Three-Phase Totally Enclosed High-Efficiency Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
3. All our oem Three-Phase Totally Enclosed High-Efficiency Motor and commercial processors have passed CSA & CUS certification, and some motors also have UL certification. The three-phase high-efficiency super-efficiency motor has passed the certification of Canada and the United States Department of Energy in 2007 and 2010.
4. On-site quality and production are managed by "6S". Implement ISO9001 international quality management system standards. Waylead has won the favor of many well-known international buyers with its excellent quality, reasonable price, punctual delivery and good service. Waylead looks forward to working with you in the near future!
|
HP |
RPM |
NEMA |
Model |
Volts |
HZ |
ENCL. |
S.F |
Full Load AMPS |
% |
WGT. |
|
1 |
3600 |
143T |
EF143T1M2A |
208-230/460 |
60 |
TEFC |
1.15 |
3.5-3.2/1.6 |
75.5 |
34 |
|
3600 |
143T |
EF143T1M2D |
575 |
60 |
TEFC |
1.15 |
1.28 |
75.5 |
34 |
|
|
1800 |
143T |
EF143T1M4A |
208-230/460 |
60 |
TEFC |
1.15 |
3.7-3.4/1.7 |
82.5 |
48 |
|
|
1800 |
143T |
EF143T1M4D |
575 |
60 |
TEFC |
1.15 |
1.36 |
82.5 |
48 |
|
|
1200 |
145T |
EF145T1M6A |
208-230/460 |
60 |
TEFC |
1.15 |
4.4-4.0/2.0 |
80.0 |
47 |
|
|
1200 |
145T |
EF145T1M6D |
575 |
60 |
TEFC |
1.15 |
1.6 |
80.0 |
47 |
|
|
1.5 |
3600 |
143T |
EF143T1.5M2A |
208-230/460 |
60 |
TEFC |
1.15 |
4.64.2/2.1 |
82.5 |
43 |
|
3600 |
143T |
EF143T1.5M2D |
575 |
60 |
TEFC |
1.15 |
1.68 |
82.5 |
43 |
|
|
1800 |
145T |
EF145T1.5M4A |
208-230/460 |
60 |
TEFC |
1.15 |
5.5-6.0Z2.5 |
84.0 |
52 |
|
|
1800 |
145T |
EF145T1.5M4D |
575 |
60 |
TEFC |
1.15 |
2.0 |
84.0 |
52 |
|
|
1200 |
182T |
EF182T1.5M6A |
208-230/460 |
60 |
TEFC |
1.15 |
5.5-5.0/2.5 |
87.2 |
66.5 |
|
|
1200 |
182T |
EF182T1.5M6D |
575 |
60 |
TEFC |
1.15 |
2.0 |
87.2 |
66.5 |
|
|
2 |
3600 |
145T |
EF145T2M2A |
208-230/460 |
60 |
TEFC |
1.15 |
57-5.2/2.6 |
84.0 |
45 |
|
3600 |
145T |
EF145T2M2D |
575 |
60 |
TEFC |
1.15 |
2.08 |
84.0 |
45 |
|
|
1800 |
145T |
EF145T2M4A |
208-230/460 |
60 |
TEFC |
1.15 |
6.6-6.0/3.0 |
84.0 |
55 |
|
|
1800 |
145T |
EF145T2M4D |
575 |
60 |
TEFC |
1.15 |
2.24 |
84.0 |
55 |
|
|
1200 |
184T |
EF184T2M6A |
208-230/460 |
60 |
TEFC |
1.15 |
7.3-€.6Z3.3 |
86.5 |
85 |
|
|
1200 |
184T |
EF184T2M6D |
575 |
60 |
TEFC |
1.15 |
2.56 |
86.5 |
85 |
|
|
3 |
3600 |
182T |
EF182T3M2A |
208-230/460 |
60 |
TEFC |
1.15 |
8.4-7.6/3.8 |
85.5 |
69 |
|
3600 |
182T |
EF182T3M2D |
575 |
60 |
TEFC |
1.15 |
3.05 |
85.5 |
69 |
|
|
1800 |
182T |
EF182T3M4A |
208-230/460 |
60 |
TEFC |
1.15 |
8.6-7.8Z3.9 |
87.5 |
88 |
|
|
1800 |
182T |
EF182T3M4D |
575 |
60 |
TEFC |
1.15 |
2.89 |
87.5 |
88 |
|
|
1200 |
213T |
EF213T3M6A |
208-230/460 |
60 |
TEFC |
1.15 |
10.8-9.8/4.9 |
87.5 |
118 |
|
|
1200 |
213T |
EF213T3M6D |
575 |
60 |
TEFC |
1.15 |
3.84 |
87.5 |
118 |
|
|
5 |
3600 |
184T |
EF184T5M2A |
208-230/460 |
60 |
TEFC |
1.15 |
13.4-12.2/6.1 |
87.5 |
88 |
|
3600 |
184T |
EF184T5M2D |
575 |
60 |
TEFC |
1.15 |
4.8 |
87.5 |
88 |
|
|
1800 |
184T |
EF184T5M4A |
208-230/460 |
60 |
TEFC |
1.15 |
14.3-13.0/6.5 |
87.5 |
95 |
|
|
1800 |
184T |
EF184T5M4D |
575 |
60 |
TEFC |
1.15 |
5.2 |
87.5 |
95 |
|
|
1200 |
215T |
EF215T5M6A |
208-230/460 |
60 |
TEFC |
1.15 |
16.5-15.0/7.5 |
87.5 |
128 |
|
|
1200 |
215T |
EF215T5M6D |
575 |
60 |
TEFC |
1.15 |
6.0 |
87.5 |
128 |
|
|
7.5 |
3600 |
213T |
EF213T7.5M2A |
208-230/460 |
60 |
TEFC |
1.15 |
20.2-18.4/9.2 |
88.5 |
121 |
|
3600 |
213T |
EF213T7.5M2D |
575 |
60 |
TEFC |
1.15 |
7.12 |
88.5 |
121 |
|
|
1800 |
213T |
EF213T7.5M4A |
208-230/460 |
60 |
TEFC |
1.15 |
20.7-18.8/9.4 |
89.5 |
137 |
|
|
1800 |
213T |
EF213T7.5M4D |
575 |
60 |
TEFC |
1.15 |
7.35 |
89.5 |
137 |
|
|
10 |
3600 |
215T |
EF215T10M2A |
208-230/460 |
60 |
TEFC |
1.15 |
26.0-23.6/11.8 |
89.5 |
134 |
|
3600 |
215T |
EF215T10M2D |
575 |
60 |
TEFC |
1.15 |
9.45 |
89.5 |
134 |
|
|
1800 |
215T |
EF215T10M4A |
208-230/460 |
60 |
TEFC |
1.15 |
27.5-25.0/12.5 |
89.5 |
146 |
|
|
1800 |
215T |
EF215T10M4D |
575 |
60 |
TEFC |
1.15 |
10.0 |
89.5 |
146 |
In which industrial applications does Three-Phase Totally Enclosed High-Efficiency Motor excel?
Three-Phase Totally Enclosed High-Efficiency Motor performs well in multiple industrial applications, including but not limited to the following areas:
Pump and compressor applications: In fluid transportation equipment such as pumps and compressors, three-phase fully enclosed high-efficiency motors can provide stable and efficient power support. Their efficient operation helps reduce energy consumption and improve the overall operating efficiency of the equipment.
Fan application: In ventilation, air conditioning and cooling systems, three-phase fully enclosed high-efficiency motors are often used to drive fans. These motors provide precise air volume control and, thanks to their high-efficiency design, reduce energy consumption while maintaining performance.
Material conveying and handling: In material conveying and handling equipment, such as conveyor belts, vibrating screens, and mixers, three-phase fully enclosed high-efficiency motors can provide reliable power support. The long life and stability of these motors are critical to ensuring continuous operation of the production line.
Machine tools and processing equipment: In industries such as metalworking, woodworking, and plastic processing, machine tools and processing equipment often require the use of high-performance motors. The three-phase fully enclosed high-efficiency motor can provide precise speed control and powerful torque output to meet various processing needs.
Automated production line: In automated production lines, three-phase fully enclosed high-efficiency motors are often used to drive various actuators, such as cylinders, rotating arms, and lifts. The efficient operation of these motors helps improve the overall efficiency and production speed of the production line.
Food and beverage industry: In the food and beverage industry, three-phase fully enclosed high-efficiency motors are widely used in food processing, packaging, and transportation. The hygienic design and efficient operation of these motors help ensure product quality and hygienic standards in the production process.
Textile and papermaking industry: In the textile and papermaking industry, three-phase fully enclosed high-efficiency motors are used to drive various textile machinery and papermaking equipment. The efficient operation and reliability of these motors are crucial to ensuring the continuity of the production process and product quality.
Petroleum and chemical industry: In the petroleum and chemical industry, three-phase fully enclosed high-efficiency motors are often used to drive equipment such as pumps, compressors, and mixers. These motors are capable of stable operation in harsh working environments and meet strict energy efficiency and safety requirements.
In general, three-phase fully enclosed high-efficiency motors perform well in multiple industrial application fields with their high performance, stability and reliability, and have become indispensable power equipment in modern industrial production.
